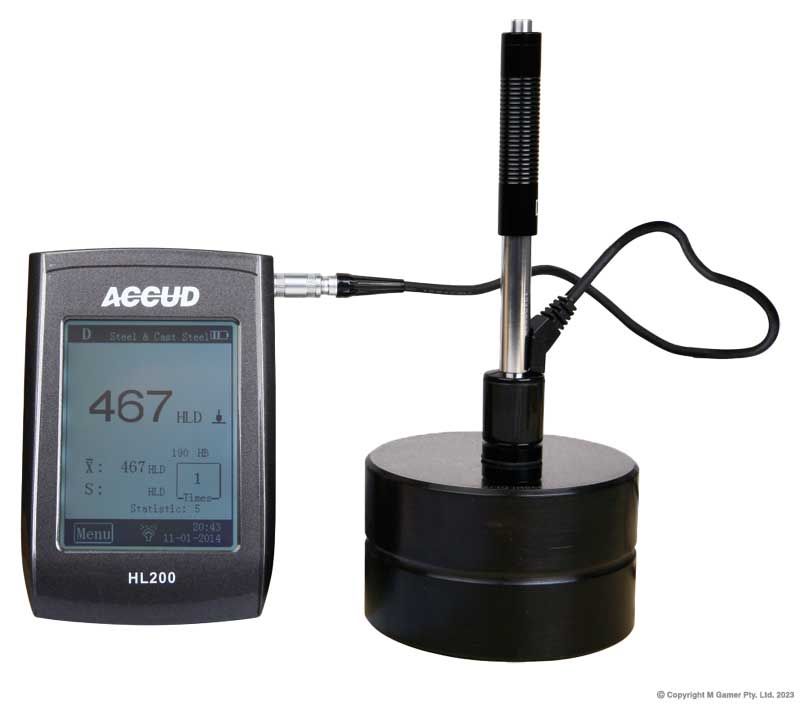

Accud Portable Hardness Tester AC-HL200

Features

• Touch screen, with backlight
• Based on HL scale, converted to other hardness scales (HV, HB, HRC, HRB, HS) and tensile strength MPa
• With wireless printer
• Can set impact direction
• Memory: 500 readings
• Low and high limits with judgement
• Automatic power off
• Conforms to the standard ASTMA956-02

Specifications

• Resolution: 1HLD, 1HV, 1HB, 0.1HRC, 0.1HRB, 1HS, 1MPa
• Accuracy: ±6HLD/0.6HRC (HLD=800)
• Min. workpiece weight (directly): >5kg
• Min. workpiece weight (on solid support): >2kg
• Min. workpiece weight (coupled on large plate): >0.1kg
• Min. workpiece thickness: >5mm
• Min. workpiece diameter: >22mm
• Max. workpiece surface roughness: Ra<1.6µm
• Power: Rechargeable battery
• Dimensions: 135×83×24mm

Includes

• 1x - Main unit
• 1x - Wireless printer
• 1x - Test block
• 1x - Small support ring
• 1x - Small brush
• 1x - USB cable and software
• 2x - Charger

DOWNLOAD BROCHURE

Stock levels vary. If this item is out of stock, additional lead time may apply. We will contact you with an estimated delivery timeframe. If you need a confirmed lead time before purchasing, please contact us.
