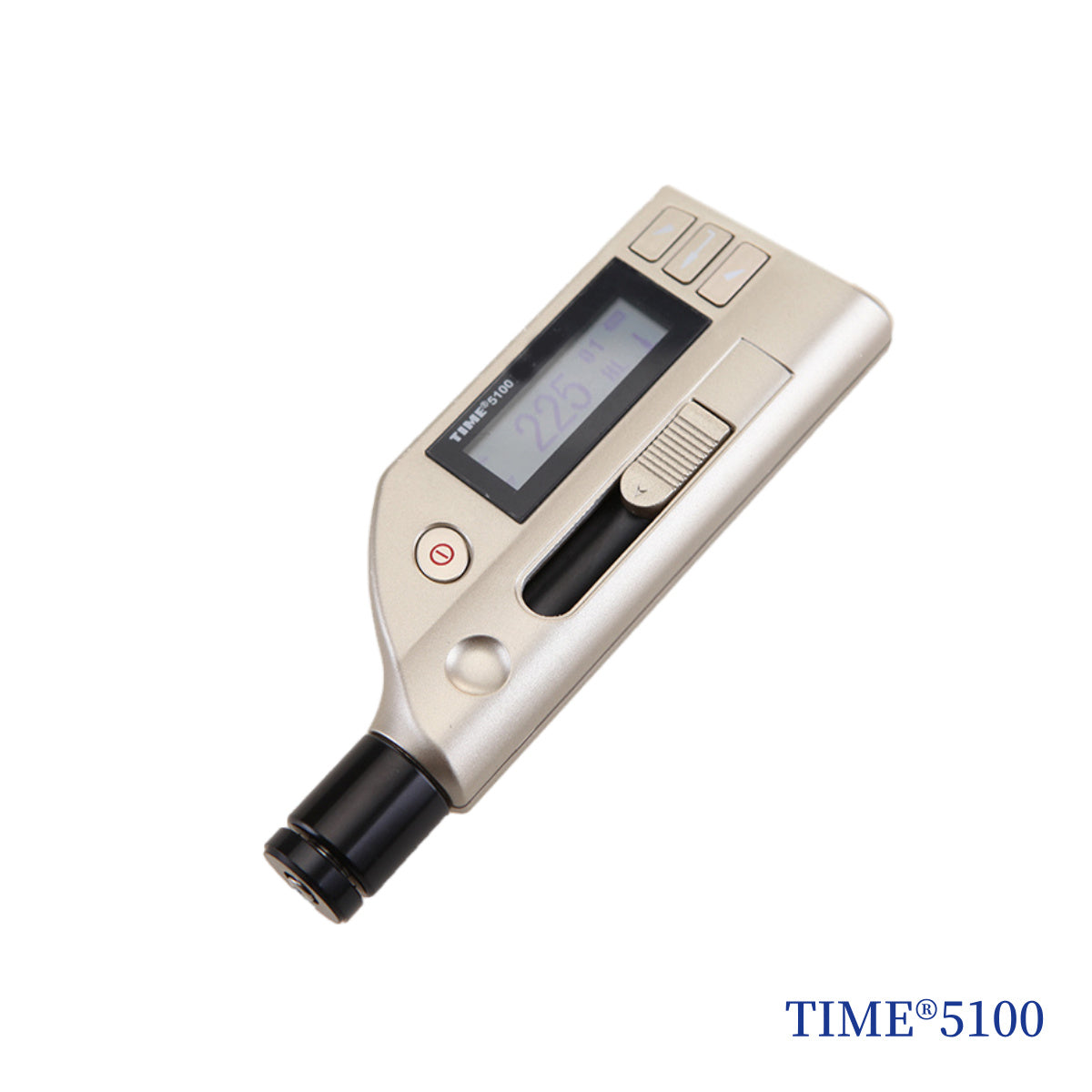

TIME®5100 Portable Hardness Tester

Category: Portable Leeb Hardness Tester

Model: TIME5100

Manufacturer (OEM): Beijing High Time Technology Co., Ltd.

Features:
Compact and lightweight unit with a simple menu for easy and convenient operation.
Conversion of hardness scales HL, HV, HB, HRC, HRB, HS.
USB interface for PC connection, supported by TIME51X Dataview software for online measurement and offline data analysis including curve charts, data tables, tolerance settings, and report generation.
RS232 interface for direct connection to printer and immediate printing of test results.
Measuring direction: 360 degrees, suitable for testing in any orientation.
Automatic identification of impact direction.
Data storage capacity of 270 readings across 9 groups.
Backlight display for operation in low-light conditions.
Upper and lower limit setting.
Powered by AAA 1.5 V batteries with battery status indication.
Automatic power-off function.
TIME5100 is integrated with a D-type impact device for general hardness testing applications.

Technical Specifications:
Impact device: D type integrated.
Supported hardness scales: HLD, HB, HRC, HRB, HV, HS.
Accuracy: ±6 HLD at 760 ± 30 HLD.
Memory capacity: 270 average readings stored across 9 groups.
Minimum surface roughness: 1.6 micrometres.
Maximum workpiece hardness: 960 HLD.
Minimum workpiece radius: 50 mm, or 10 mm when using a support ring.
Minimum workpiece weight: 2 to 5 kg with stable support, or 0.05 to 2 kg with compact coupling.
Minimum workpiece thickness when coupled: 5 mm.
Minimum hardened layer thickness: 0.8 mm.
Indentation depth: refer to impact device data.
Continuous operating time: 8 hours without backlight.
Power supply: AAA 1.5 V batteries.
Operating temperature range: 0 to 40 degrees Celsius.
Dimensions: 155 × 55 × 25 mm.
Weight: 180 grams.

Standard Delivery:
Main unit: 1.
Test block (HLD): 1.
Cleaning brush: 1.
TIME certificate: 1.
Warranty card: 1.
Instruction manual: 1
