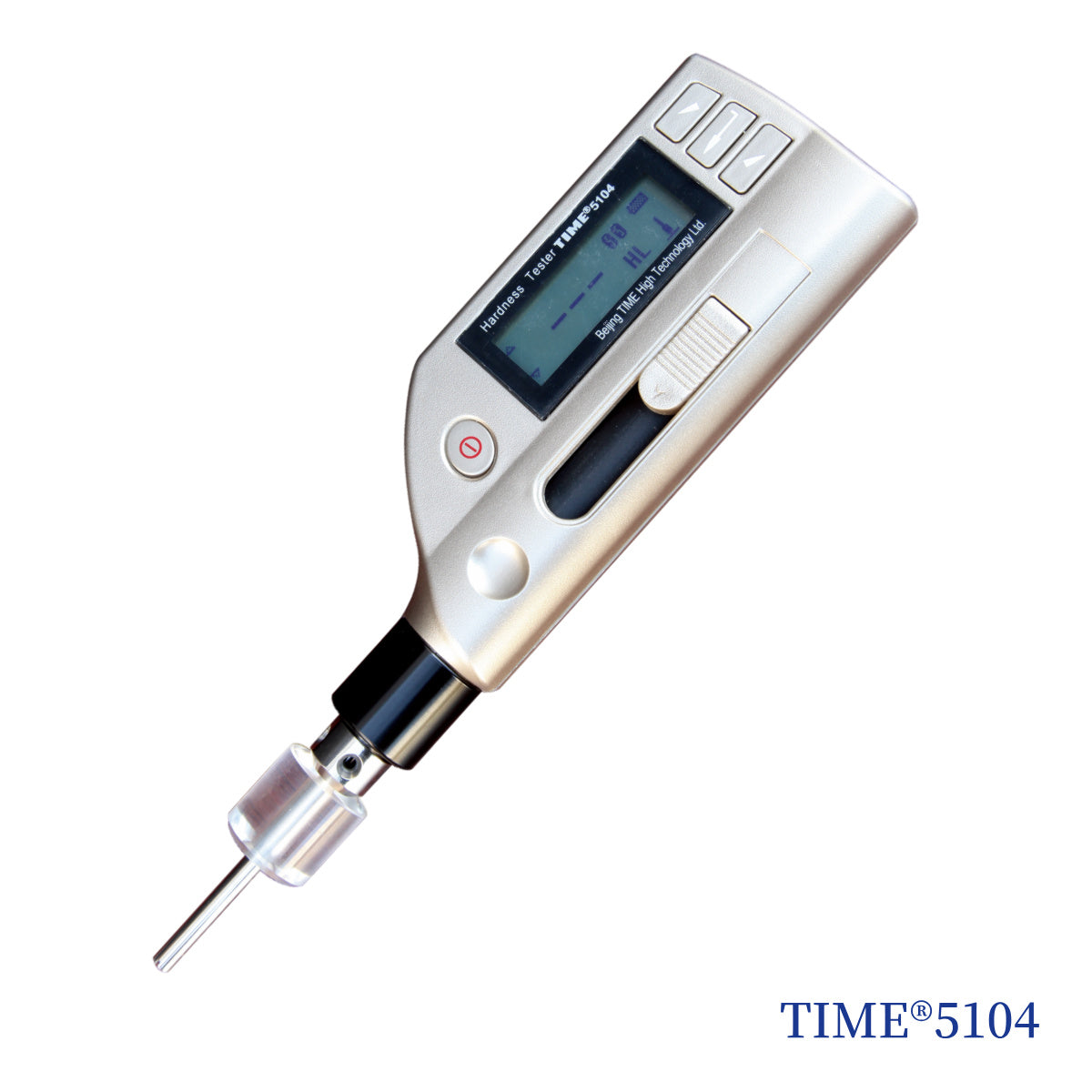

TIME®5104 Portable Hardness Tester

Category: Portable Leeb Hardness Tester.
Model: TIME5104.
Manufacturer: Beijing High Time Technology Co., Ltd.
The TIME5104 is a compact and lightweight portable hardness tester designed for simple and convenient operation. It supports conversion between multiple hardness scales including HL, HV, HB, HRC, HRB, and HS. The device includes a USB interface for PC connection and works with TIME51X Dataview software for online measurement and offline data analysis such as curve charts, data tables, tolerance settings, and report generation. An RS232 interface allows direct connection to a printer for immediate printing of test results. The tester supports 360‑degree measurement and automatically identifies the impact direction. It stores up to 270 readings across nine groups and includes a backlight display for low‑light environments. Upper and lower limits can be set, and the unit is powered by AAA 1.5 V batteries with battery status indication and automatic power‑off. The TIME5104 is integrated with a DL‑type impact device designed for testing deep grooves and gear tooth surfaces.

Technical Specifications:

Impact device: DL integrated.
Supported hardness scales: HLDL, HB, HRC, HRB, HV, HS.
Accuracy: ±12 HLDL.
Memory capacity: 270 average readings across 9 groups.
Minimum surface roughness: 1.6 micrometres.
Maximum workpiece hardness: 950 HLDL.
Minimum workpiece radius: 10 mm with support ring.
Minimum workpiece weight: 2 to 5 kg with stable support, or 0.05 to 2 kg with compact coupling.
Minimum workpiece thickness when coupled: 5 mm.
Minimum hardened layer thickness: 0.8 mm.
Indentation depth: refer to impact device data.
Continuous working time: 8 hours without backlight.
Power supply: AAA 1.5 V batteries.
Operating temperature: 0 to 40 degrees Celsius.
Dimensions: 215 × 60 × 25 mm.
Weight: 180 grams.

Standard Delivery:

Main unit: 1.
Test block (HLD): 1.
Cleaning brush: 1.
TIME certificate: 1.
Warranty card: 1.
Instruction manual: 1.
